AcousticGyps Basic 40
პროდუქტის აღწერა

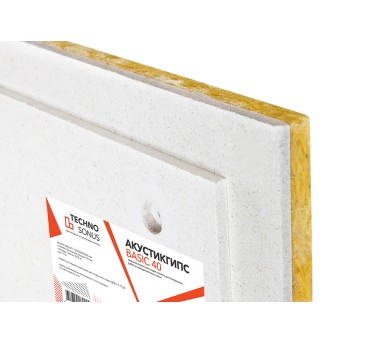

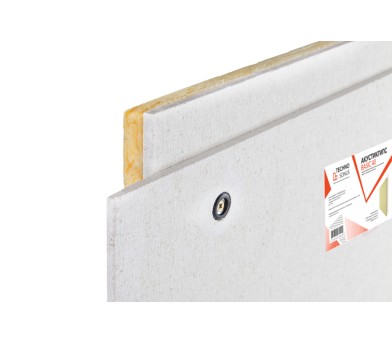

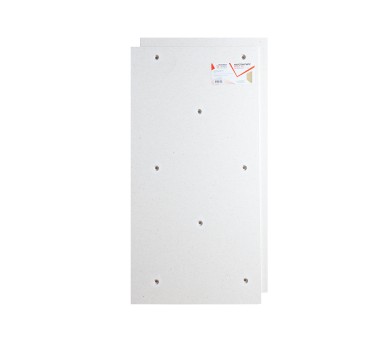

AcousticGyps Basic 40 is a sandwich panel used for additional sound insulation of walls and partitions made of gypsum partition blocks, bricks, concrete, Ytong blocks. Frameless structure installed using specially designed antivibration mountings.
Used together with mounting kit AcousticGyps Basic 40 (supplied with the panel).
შემადგენლობა
- gypsum-fiber sheet

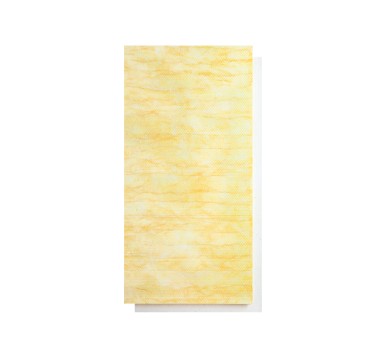

- high-density acoustic mineral wool
| Modifications | AcousticGyps Basic 40 | AcousticGyps Basic 70 |
|---|---|---|
Length, mm* | 1200 | 1200 |
Width, mm* | 600 | 600 |
Thickness, mm* | 40 | 70 |
Panel Area, m2 | 0.72 | 0.72 |
Panel Weight, kg | 19 | 19.5 |
* sizing w/o 50 mm rebated edge
| Parameter | AcousticGyps Basic 40 | AcousticGyps Basic 70 |
|---|---|---|

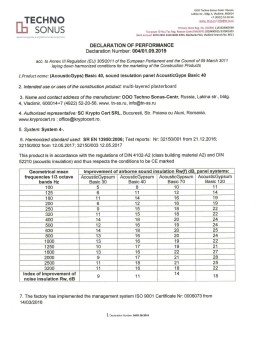

Improvement of airborne sound reduction index ΔRw, dB | 13-14 | 15-18 |
Surface density, kg/m2 | 26.3 | 27.08 |
Fire hazard class | КМ1 | КМ1 |
Storage period* | 24 months | 24 months |
* subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
| Parameter | AcousticGyps Basic 40 | AcousticGyps Basic 70 |
|---|---|---|
Packing type | pallet | pallet |
Number of Boards per Pallet, pcs. | 25 | 15 |
Area on Pallet, m2 | 18 | 10.8 |
Pallet Weight, kg | 475 | 292.5 |
Number of Pallets in Euro Trailer, pcs. | 28 | 28 |
Area in Trailer, m2 | 594 | 356.4 |
Full loaded weight, kg | 15675 | 9652.5 |
The products shall be stored horizontally on pallets. Placement of pallets on one another is not allowed.
The products can be shipped in cardboard boxes or individually. Before installation, the panels shall undergo mandatory acclimatization for 1-2 days.
The products shall be stored away from sources of heat and UV radiation in a dry place at max. 35°C.
When loading and unloading, protect the material from impacts.
