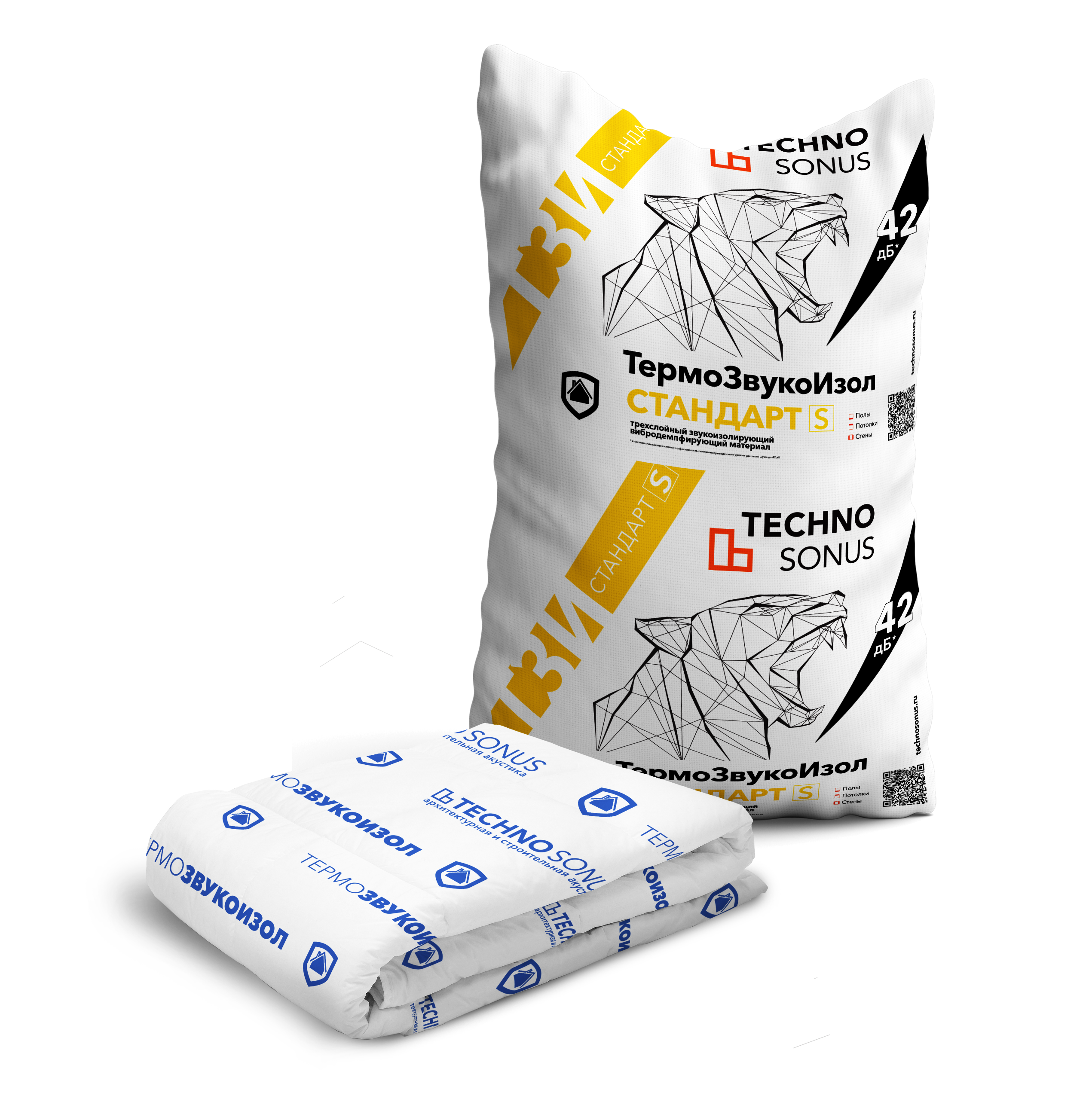

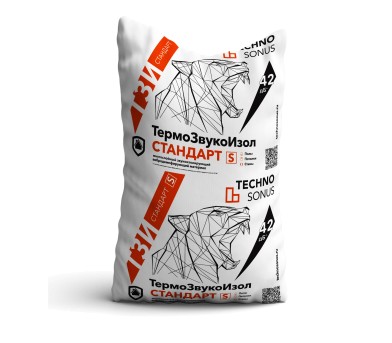

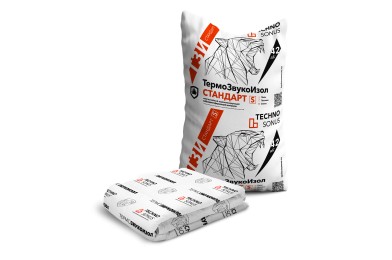

TSI Standard S

პროდუქტის აღწერა

TSI - შრიანი ხმის საიზოლაციო და ვიბრო საიზოლაციო ხალიჩაა, რომელიც დამზადებულია მექანიკური მეთოდით მაღალი სიმკვრივის სპეციალურად ნემსით ნაჩხვლეტი დაკალიბრებული მასალისგან, ყოველგვარი მავნე შენაერთების გარეშე.

მოდიფიკაციები
მახასიათებლები
შენახვა და ტრანსპორტირება
სერთიფიკატები
მოდიფიკაციები
მოდიფიკაციებიTSI StandardTSI Standard S
სიგრძე, მმ**
1000010000
სიგანე, მმ**
15001500
სისქე, მმ*
1514
ფართობი, მ2
1515

* - the thickness of the material is indicated in a relaxed (not compressed) state.

** - dimensions include a protective cover made of non-woven material. Length tolerance: ±0.1m. Width tolerance: 1450 m ±0.05m.

მახასიათებლები
მახასიათებლებიTSI StandardTSI Standard S
დარტყმითი ხმაურის იზოლაციის ინდექსი ΔLnw, დბ
3230
თბოგამტარობის კოეფიციენტი, W/(m°C)
0.03330.0333
ზედაპირული სიმკვრივე, კგ/მ2
2.062.06
ელასტიურობის დინამიური მოდული Еd, მპა; დინამიური სიმყარე s’ , МN/მ3 და ფარდობითი კუმშვადობის კოეფიციენტი εd
Ed / εdEd / εd
დატვირთვა ნიმუშზე 2000 პა
0.19 / 0.430.19 / 0.43
დატვირთვა ნიმუშზე 5000 პა
0.26 / 0.500.26 / 0.50
ხანძარ საშიშროების კლასი
KM1KM1
Storage period*
24 months24 months

* subject to storage and transportation conditions.

After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.

შენახვა და ტრანსპორტირება
მოდიფიკაციებიTSI StandardTSI Standard S
შეფუთვის ზომა (სიგრძე X სიგანე X სიმაღლე), მმ
650 х 400 х 850600 x 900 x 300
ფართობი, მ2
1515
შეკვრის მოცულობა, მ3
0.260.133
შეკვრის წონა, კგ *
3018
შეფუთვათა რაოდენობა სატვირთოზე (83 მ3), ცალი
420600

* - depending on the permissible deviations in size, density and moisture content of the material, the weight of the package may vary from the declared one.

TSI mats should be transported in covered bodies. Laying material on top of each other without height restrictions is allowed. When transporting, loading, unloading and storing mats, it is necessary to ensure their safety from damage, contamination and moisture.

TSI mats shall be stored in dry, enclosed premises or under a canopy in packages, away from atmospheric precipitation and groundwater. When storing, packages should be placed without sagging on wooden pallets, boards or other support materials.

The material is loaded manually without pallets for a larger load, therefore, a rigid crate in the truck is required. On customer request, the material may be stacked on pallets. But in this case loading norms are significantly reduced.

All the rolls are packed by a vacuum press, so packaging damage leads to a "swelling" of the roll and increase of its overall dimensions. Be careful not to damage protective packaging while carrying!

სერთიფიკატები
